Standard solutions

The fan coolers for fluids are built of a lamellar heat exchanger and axial fans. The device, depending on its version, is equipped with 4, 6, 8 or 10 fans.

The heat exchangers were designed in a way providing effective utilization of heat exchange between the cooling agent and air. In a standard version, the heat exchanger is made from copper pipes and aluminium lamellas. Terminals for connecting with the system are threaded.  The device housing, as a standard, is made of zinc-coated steel powder-coated. The colour of the housing and frame – light green or grey. The housing is made in a way which permits for placing a number of devices side by side.

The sandard parameters of a heat exchanger operation:

Maximum temperature: 110 oC.
Maximum pressure: 1.0MPa.

We make the coolers in horizontal, vertical and "V" mode.

If a standard design is not optimal in your case, please get acquainted with our dedicated solutions. (DEDICATED SOLUTIONS)

Series of product types:

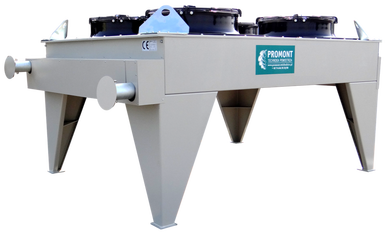

Horizontal version:

Size Power (kW) Medium flow (m3/h) Number of fans (pcs.) Installed electr. power. (kW)
NW16KZ/40T-06R-2900A-25P-40NC 265 46 4 8,4
NW16KZ/40T-06R-4500A-25P-60NC 400 70 6 12,6
NW16KZ/40T-06R-6500A-25P-120NC 550 95 8 16,8

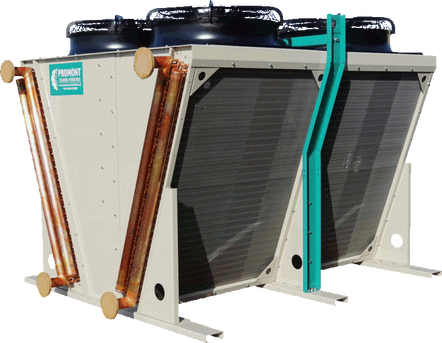

V Version:

Size Power (kW) Medium flow (m3/h) Number of fans (pcs.) Installed electr. power (kW)
2xNW16KZ/32T-06R-2900A-25P-32NC 360 62 4 13,2
2xNW16KZ/32T-06R-4500A-25P-48NC 640 114 8 26,4
2xNW16KZ/32T-06R-6500A-25P-64NC 860 150 10 33,0
